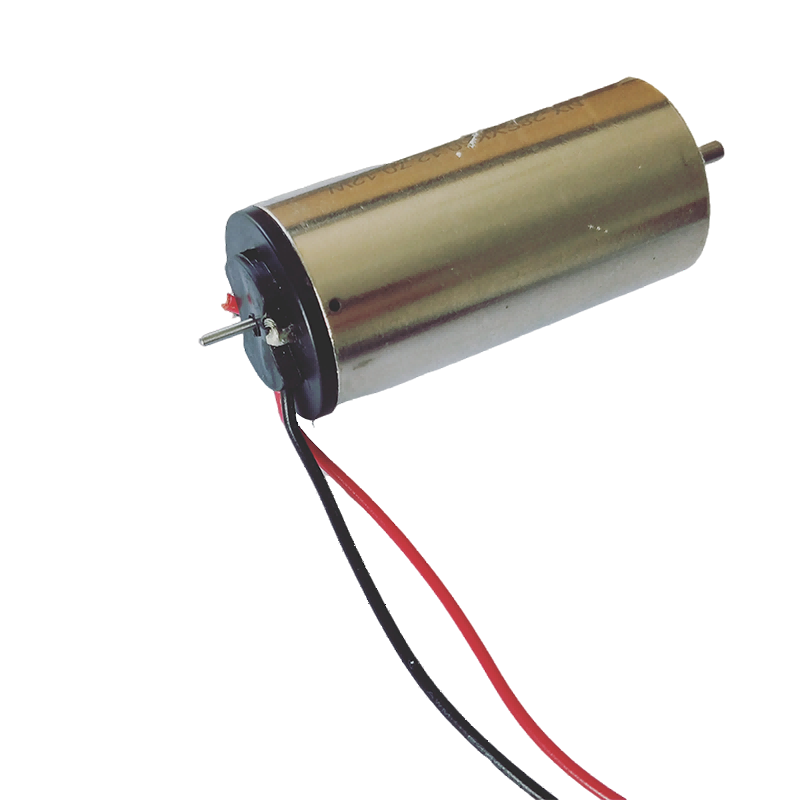

28mm Precious Metal Brush DC Motor
Buy Ruixing 28mm Precious Metal Brush DC Motor which is of high quality directly with low price.
Send Inquiry
Product Description
Buy Ruixing 28mm Precious Metal Brush DC Motor which is of high quality directly with low price. Ningbo Ruixing Motor Co.,LTD has excellent quality and reasonable price, has been exported to nearly 60 countries, and has been welcomed and trusted by customers at home and abroad Welcome to contact us. If you are interested in our products, you can ask us now and we will get back to you promptly.
28SYK30.G.J Technique Parameter
MOTOR PARAMETER
|
Nominal Power |
W |
0.60 |
0.6 |
|
Rated Voltage |
Volt |
6 |
6 |
|
Resistance ±10% |
Ohm |
12.00 |
3.83 |
|
No-load Speed ±10% |
rpm |
4200 |
7700 |
|
No-load Current ≤125% |
mA |
15 |
25 |
|
Speed Constant |
rpm/V |
700 |
1283 |
|
Torque Constant |
mNm/A |
13.24 |
7.33 |
|
Stall Current |
mA |
500 |
1567 |
|
Stall Torque |
mNm |
6.62 |
11.48 |
|
Max. Efficiency |
% |
68 |
76 |
|
Inductance mH |
mH |
0.2 |
0.2 |
|
Mechanical Time Constant |
ms |
21.05 |
21.04 |
|
Rotor Inertia |
gcm² |
3.16 |
2.99 |
|
At Max. Output |
|||
|
Current |
mA |
150 |
110 |
|
Torque |
mNm |
1.99 |
0.81 |
|
Speed |
rmp |
2940 |
7159 |
|
Output |
W |
0.6 |
0.6 |
MEASUREMENT
MOTOR CHARACTERISTIC
● Ambient Temperature Range -40～+80℃
● Max. permissible winding temperature 155℃
● Number of commutator segments 9
● Weight 80g
● Precious Metal Brush
● Max. deep of screw installation 3mm
● Max. permissible winding temperature 155℃
● Number of commutator segments 9
● Weight 80g
● Precious Metal Brush
● Max. deep of screw installation 3mm
28SYK38.G.J Technique Parameter
MOTOR PARAMETER
|
Nominal Power |
W |
3.0 |
4.0 |
|
Rated Voltage |
Volt |
12 |
12 |
|
Resistance ±10% |
Ohm |
6.50 |
4.6 |
|
No-load Speed ±10% |
rpm |
4200 |
5500 |
|
No-load Current ≤125% |
mA |
15 |
15 |
|
Speed Constant |
rpm/V |
350 |
458 |
|
Torque Constant |
mNm/A |
27.08 |
20.73 |
|
Stall Current |
mA |
1846 |
2609 |
|
Stall Torque |
mNm |
49.99 |
54.07 |
|
Max. Efficiency |
% |
83 |
85 |
|
Inductance mH |
mH |
0.368 |
0.27 |
|
Mechanical Time Constant |
ms |
5.55 |
6.71 |
|
Rotor Inertia |
gcm² |
6.29 |
6.28 |
|
At Max. Output |
|||
|
Current |
mA |
350 |
400 |
|
Torque |
mNm |
9.48 |
8.29 |
|
Speed |
rmp |
3404 |
4657 |
|
Output |
W |
3 |
4 |
MEASUREMENT
MOTOR CHARACTERISTIC
● Ambient Temperature Range -40～+80℃
● Max. permissible winding temperature 155℃
● Number of commutator segments 9
● Weight 110g
● Precious Metal Brush
● Max. deep of screw installation 3mm
● Max. permissible winding temperature 155℃
● Number of commutator segments 9
● Weight 110g
● Precious Metal Brush
● Max. deep of screw installation 3mm

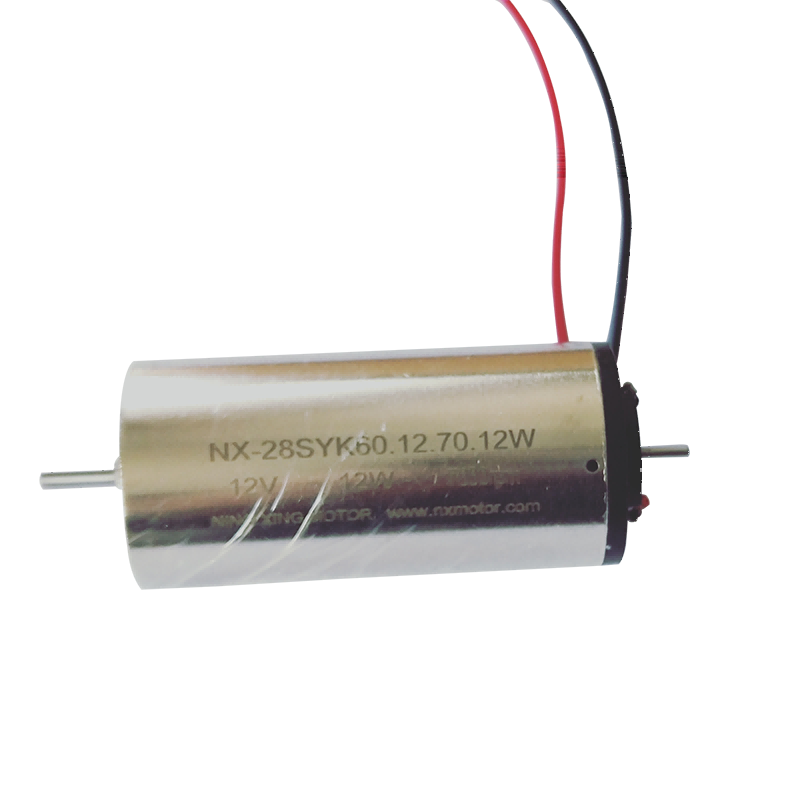

28SYK60.G.J Technique Parameter
MOTOR PARAMETER
|
Nominal Power |
W |
12.0 |
30.0 |
|
Rated Voltage |
Volt |
12 |
24 |
|
Resistance ±10% |
Ohm |
0.94 |
2.6 |
|
No-load Speed ±10% |
rpm |
7000 |
8400 |
|
No-load Current ≤125% |
mA |
35 |
150 |
|
Speed Constant |
rpm/V |
583 |
350 |
|
Torque Constant |
mNm/A |
16.33 |
26.85 |
|
Stall Current |
mA |
12766 |
9231 |
|
Stall Torque |
mNm |
208.51 |
247.88 |
|
Max. Efficiency |
% |
90 |
76 |
|
Inductance mH |
mH |
0.084 |
0.081 |
|
Mechanical Time Constant |
ms |
3.90 |
4.30 |
|
Rotor Inertia |
gcm² |
11.07 |
12.10 |
|
At Max. Output |
|||
|
Current |
mA |
1100 |
1521 |
|
Torque |
mNm |
17.97 |
40.84 |
|
Speed |
rmp |
6397 |
7016 |
|
Output |
W |
12 |
30 |
MEASUREMENT
MOTOR CHARACTERISTIC
● Ambient Temperature Range -40～+80℃
● Max. permissible winding temperature 155℃
● Number of commutator segments 9
● Weight 165g
● Precious Metal Brush
● Max. deep of screw installation 4mm
● Max. permissible winding temperature 155℃
● Number of commutator segments 9
● Weight 165g
● Precious Metal Brush
● Max. deep of screw installation 4mm
