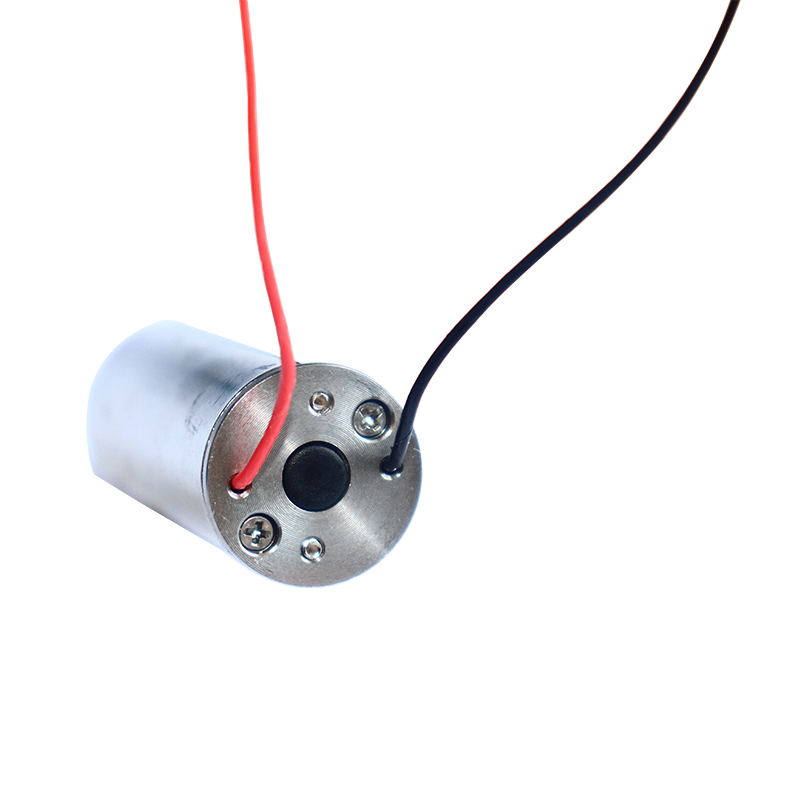

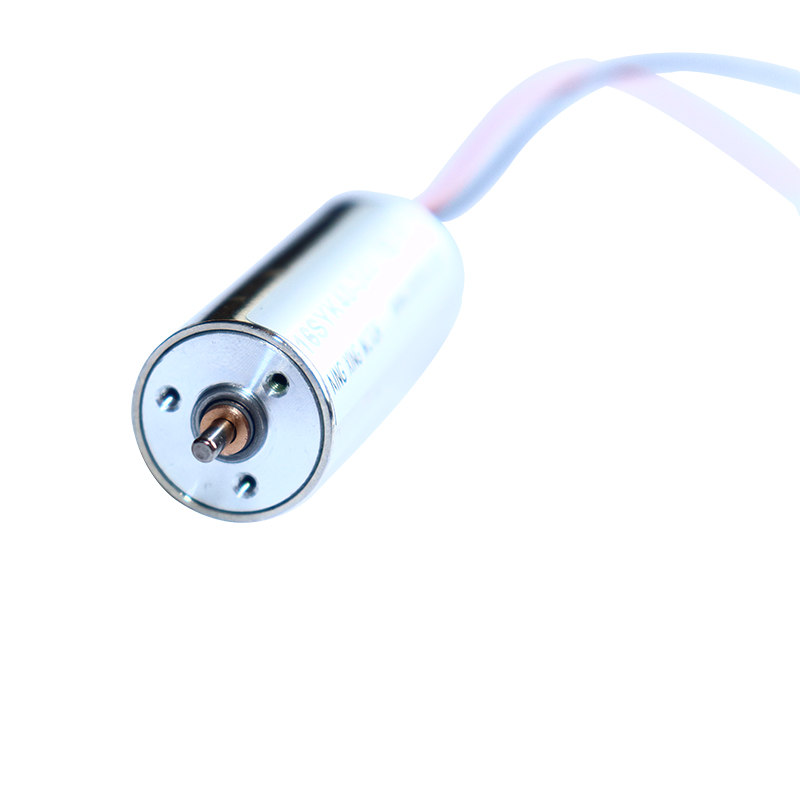

16mm Carbon Brush DC Motor

You can rest assured to buy 16mm Carbon Brush DC Motor from our factory. We insist on standardization, systematization and standardization of production, implement an all-round and multi-angle quality management strategy to ensure product quality, whole process quality inspection and tracking, and not let go of every small link.

Send Inquiry

Product Description

You can rest assured to buy 16mm Carbon Brush DC Motor from our factory. A 16mm carbon brush DC motor is a small electric motor that uses carbon brushes to transfer electric current to the rotating armature, which in turn generates mechanical power. The 16mm size refers to the diameter of the motor's body.These types of motors are commonly used in small electronic devices such as toys, remote-controlled vehicles, and small appliances. They are also used in various industrial and automotive applications.

16SYK27.H.T Technique Parameter

MOTOR PARAMETER

Nominal Power	W	5.0
Rated Voltage	Volt	18
Resistance ±10%	Ohm	11.00
No-load Speed ±10%	rpm	12700
No-load Current ≤125%	mA	85
Speed Constant	rpm/V	706
Torque Constant	mNm/A	12.84
Stall Current	mA	1636
Stall Torque	mNm	21.01
Max. Efficiency	%	60
Inductance mH	mH	0.4
Mechanical Time Constant	ms	6.69
Rotor Inertia	gcm²	1.05
At Max. Output
Current	mA	410
Torque	mNm	5.26
Speed	rmp	9518
Output	W	5

MEASUREMENT

MOTOR CHARACTERISTIC

● Ambient Temperature Range -40～+100℃
● Max. permissible winding temperature 155℃
● Number of commutator segments 9
● Weight 30g
● Carbon Brush
● Max. deep of screw installation 3mm

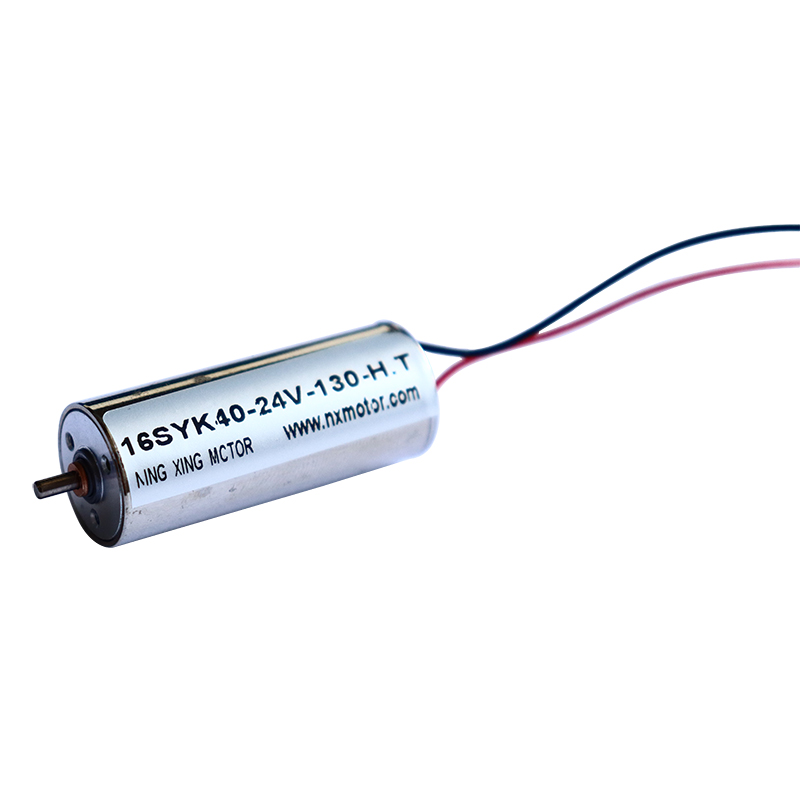

16SYK40.H.T Technique Parameter

MOTOR PARAMETER

Nominal Power	W	13.0
Rated Voltage	Volt	24
Resistance ±10%	Ohm	6.5
No-load Speed ±10%	rpm	13000
No-load Current ≤125%	mA	50
Speed Constant	rpm/V	542
Torque Constant	mNm/A	17.40
Stall Current	mA	3692
Stall Torque	mNm	64.24
Max. Efficiency	%	78
Inductance mH	mH	0.4
Mechanical Time Constant	ms	3.60
Rotor Inertia	gcm²	1.70
At Max. Output
Current	mA	670
Torque	mNm	11.66
Speed	rmp	10641
Output	W	13

MEASUREMENT

MOTOR CHARACTERISTIC

● Ambient Temperature Range -40～+100℃
● Max. permissible winding temperature 155℃
● Number of commutator segments 9
● Weight 40g
● Carbon Brush
● Max. deep of screw installation 3mm
